We all know that speed is very important. The wire rod mill is the F1 of rolling mills and the best reference to prove the capabilities of a design and manufacturing leader like Hani Tech.
The key to success in this rolling mill field is mainly reflected in the speed, control, process, and metallurgical results.
Hani Tech’s strength lies in having a team of specialists and technical engineers with high skills and knowledge based on decades of executing wire rod mill projects.
As a long-rolling of technology driver, Hani Tech applies knowledge and experience to provide the best wire rod mill solutions in terms of technology, reliability, and return on investment, a very important factor considering the highly competitive market conditions.
The combination of appropriate equipment provides a wide range of applications, from commercial grades to the finest SBQ grades, with tight dimensional tolerances, metallurgical quality, uniformity, and ultimately perfect surface quality requirements.
All self-developed key wire rod mill equipment is as follows:
High-speed finishing blocks mills/wire rod mills.
State-of-the-art cooling line laying heads.

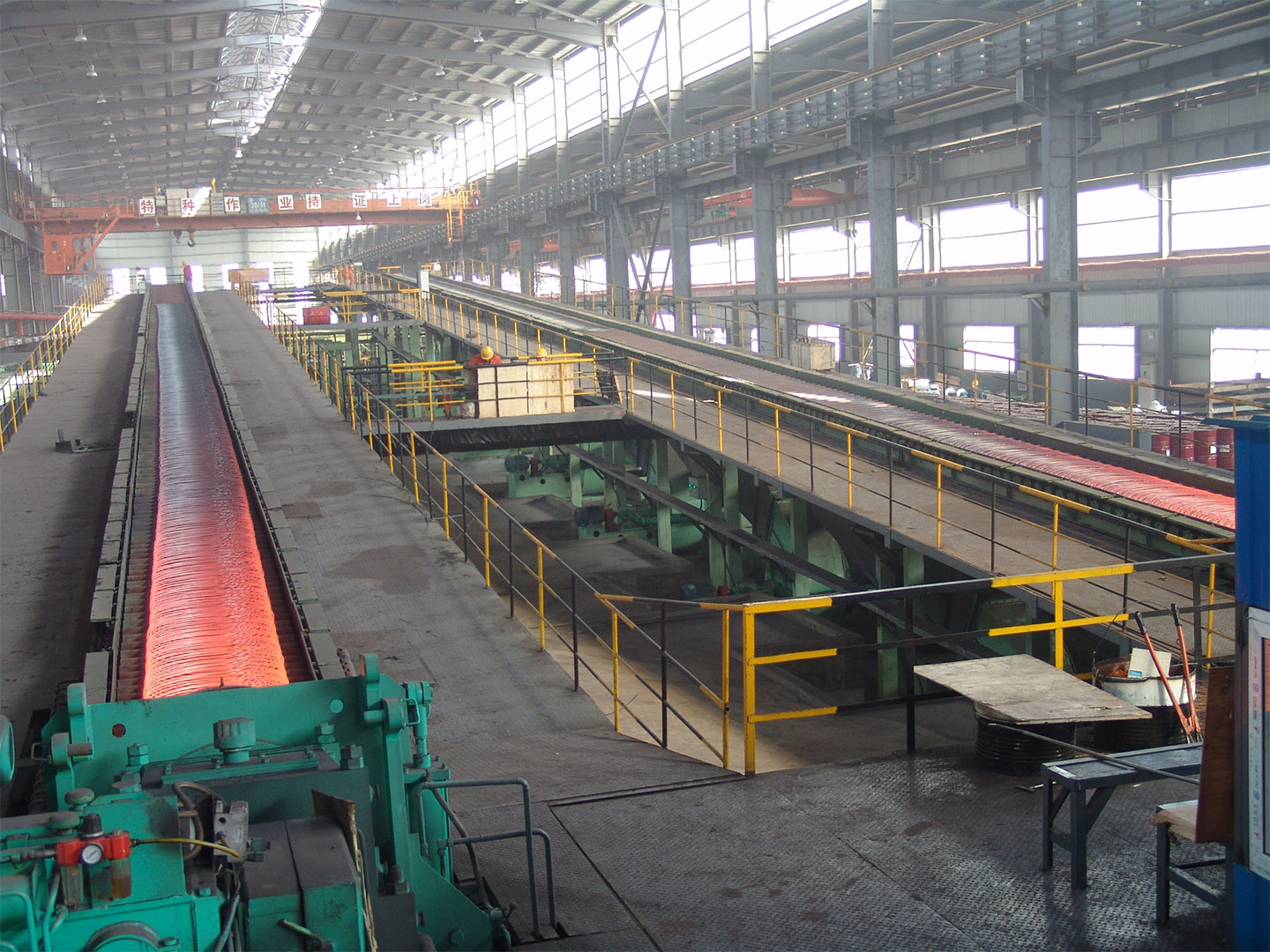

Cooling conveyor with efficient cooling fan and insulating cover.
The coil-forming chamber has a device to better distribute the waps inside the coil, ensuring a compact coil shape.
Horizontal and vertical coil handling systems are equipped with compacting and strapping devices.
Hani Tech has patented a new wire rod mill laying head design that improves equipment performance and simplifies maintenance. Simplified tubing replacement reduces clamps by 36% of those used in standard techniques. Reduced split ring wear eliminates broken tail ends. Improved motor orientation results in tighter wire tolerances.
Hani Tech has been designing, manufacturing, installing, and commissioning coil-handling equipment for decades. The coils are handled and cooled in a vertical pallet system before being transferred to a horizontal hook system which transports the coils to the compactor unit. Trimming and quality stations are located on the coil handling line.
Parameters of Wire Rod Mill
|The kinds of rolling steel||Carbon steel, low alloy steel, high alloy steel, high-quality carbon structural steel|
|Speed of the exit of the tenth frame||110m/s|
|Raw Material||From 60*60 up to 200*200 billets|
|Annual Capacity||50,000 up to 500,000tons|
Structural Characteristics of Wire Rod Mill/Block Mill:
●Mill stand uses top crossed 45℃ composition form to achieve no twisting, no contact axis, little axis and shock for equipment, besides, it decreases the center of gravity height, the stability increased as well, while, the total weight has decreased and it is very easy to maintain. Ten stands are concentrated transmission.
●Roll frame is composed of roller box, bevel gearbox, and spare parts of bevel gearbox.
●Roller box and bevel gearbox adopt outside combinational instruction.
●Roller loop is tungsten carbide, and it is connected to the cantilever roll shaft, we use the specific hydraulic changing roll equipment to replace the roll loop, it is convenient and easy.
- We can provide a foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption
As a professional Wire Rod Mill/Block Mill manufacturer in China, We can supply designing, manufacturing, installation, and commissioning of the equipment with "turn-key" service. We can also design, manufacture, and revamp another non-standard requirement according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
