Introduction

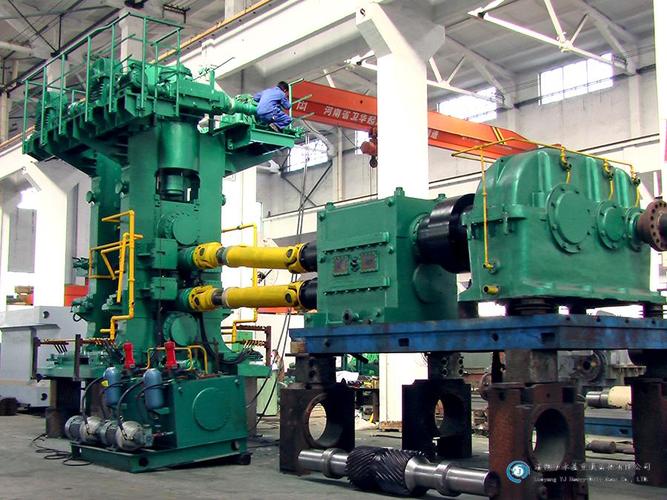

1. 6-Hi HC Rolling Mill is available for carbon steel, special steel, and another strip rolling. Particularly suitable for rolling high-precision flat, thin strip.
2. With hydraulic bending roll device and an intermediate roll shifting device, 6-Hi HC Rolling Mill can quickly adjust the strip crown, change the contact pressure distribution between the rolls, eliminating the unwanted contact area between the rolls, to control the plate shape and plate convexity purposes.
3. Finished plate flat, stable, controllable, effectively improve the strip edge thinning and edge crack phenomenon; Can be configured with smaller working roller diameter, increased pass reduction and total reduction rolling process, work roll can be used flat roller type, reducing the amount of spare roll and consumption.
4. AGC 6-hi HC High precision mill control, especially for high-precision flat, strip rolling.
Process Flow
Uncoiler (coil car)→Starting straightening machine→Front coiler→(Unloading car)→Machine front device→ 6-hi main rolling mill→ Machine after the device→After the coiler (Unloading car)→ (Auxiliary wrapper)
Parameters
Production Line Process Parameters
Φ150 Φ175 Φ460x450 | Φ150 Φ175 Φ500x500 | Φ165 Φ200 Φ630x650 | Φ165 Φ250 Φ680x800 | Φ170 Φ300 Φ800x900 | Φ300 Φ370 Φ950x1050 | Φ330 Φ370 Φ1050x1250 | Φ400 Φ450 Φ1250x1450 | ||||||
Billets Thickness | 1.0-2.5 | 1.0-2.5 | 1.0-3.5 | 1.0-3.5 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | |||||
Finished Products thickness | 0.15-1.2 | 0.15-5 | 0.18-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | |||||
Steel Strip Width | 250-350 | 300-400 | 400-550 | 550-700 | 700-900 | 650-950 | 700-1100 | 900-1250 | |||||
Driving Mode | Work-roll Drive | Work-roll Drive | Work-roll Drive | Work-roll Drive | Work-roll Drive | Work-roll Drive | Work-roll Drive | Work-roll Drive | |||||
Rolling Force | 2800 | 3500 | 5000 | 5500 | 6500 | 10000 | 12000 | 15000 | |||||
Screw Down Mode | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic
| Electric | Hydraulic | Electric | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Rolling Speed | 4 | 4-6.5 | 4 | 4-8 | 4 | 4-5 | 4 | 4-5 | 4 | 4-5 | 10 | 8-12 | 8-16 |
Rolling Material | Common Steel | Common Steel | Stainless Steel Common Steel | Common Steel | Stainless Steel Common Steel | Common Steel | Common Steel | Common steel |
Features
1. With hydraulic bending roll device and an intermediate roll shifting device, can quickly adjust the strip crown, Change the contact pressure distribution between the rolls, eliminating the unwanted contact area between the rolls, to control the plate shape and plate convexity purposes.
2. Finished plate flat, stable, controllable, effectively improve the strip edge thinning and edge crack phenomenon; Can be configured with smaller working roller diameter, increased pass reduction and total reduction rolling process, work roll can be used flat roller type, reducing the amount of spare roll and consumption.
